Technical Specifications:
Structure
Thickness	mm	32mm
Thickness	Inch	1 1/4″
Weight	g/m²	4000
Weight	lb / ft²	0.780
Standard Width	mm	1200 mm
Standard Width	Inch	47.25″
Minimum radius- cold bending arches	m	5.6
Minimum radius- cold bending arches	Inch	18’5″
U-Factor by ASTM C177	W / m² • ºС	1.06
U-Factor by ASTM C177	Btu / h • ft² • fº	0.186
R-Factor	Btu / h • ft² • fº	5.36
Optical Specification:
Thickness	Light Transmission (%) ASTM D 1003
mm	Clear	Ice
32	37	–

Polygal Thermogal Multi Layers sheets combine Extra Strong, Extra Rigid, Extra Effective Insulation, highly effective thermal insulation with extra strength for low pitch roofing.

Suitable for cold climates – extremely low R-Value 3.23 – 5.11
Save on heating energy costs.
Bright, transparent look, large range of colours, shades and reflective coding.
Covered by 10 year warranty for colour, light transmission and impact strength.
Best insulation performance during cold winter nights.
Rigid sheet structure provides extra strength under wind and snow loads.

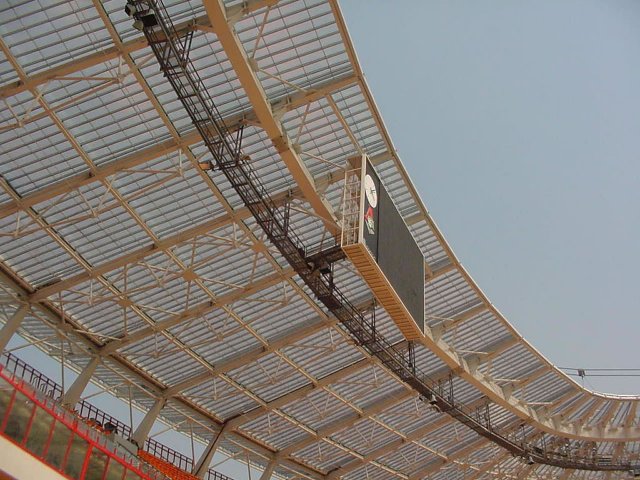

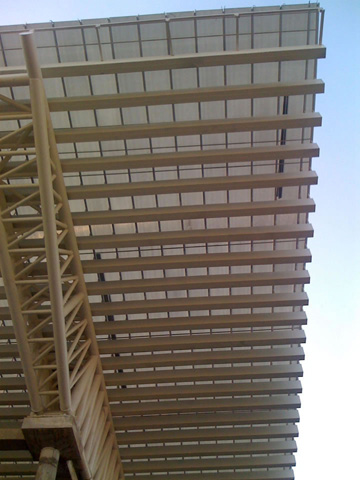

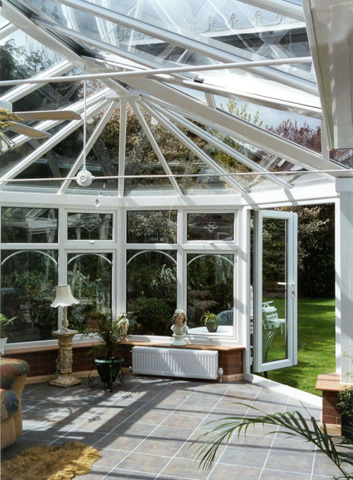

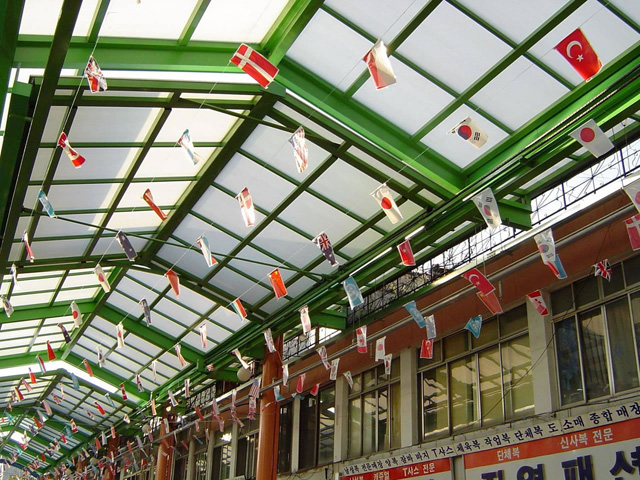

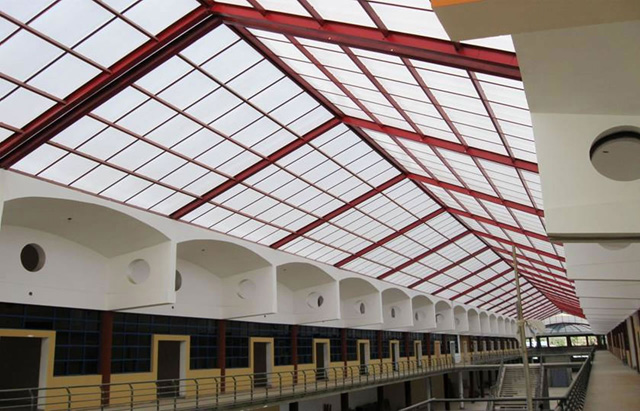

Recommended Uses: Low pitch coverings, Lean- to conservatories, Large span structures, Stadiums, Closed structures with interior climate control, Industrial windows.

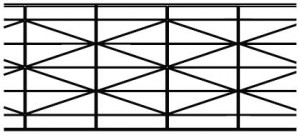

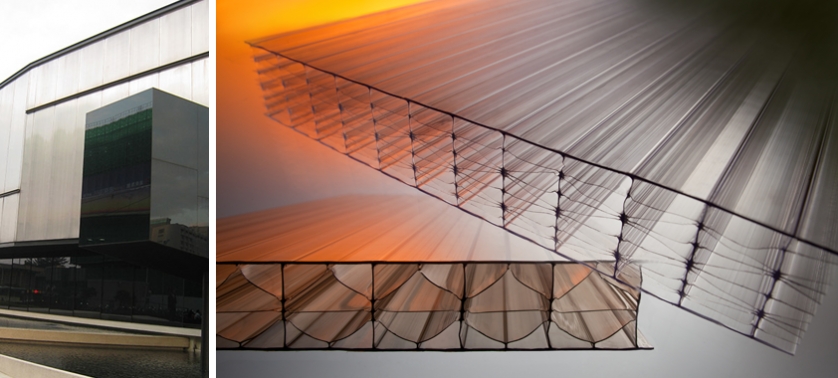

Unique inner X-brace structure provides extra-strength, rigidity and outstanding insulation. It is available in different widths and colours. Ideal for low pitched roofs and for glazing enclosed structures with large-span openings.

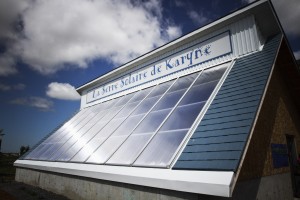

A Solar Greenhouse Classroom

(Greenwall Solutions Inc. Donate $4000 for this project)

Thermogal 40mm 3 ton Minimum order

Thermogal	CLR
Thickness	32mm

M.S.R.P.	N/A Sq./Ft
4′ x 8′ sheet	N/A
4′ x 12′ sheet	N/A
4′ x 16′ sheet	N/A
4′ x 24′ sheet	N/A
* Add 10% for colours * Volume discount available * Taxes, crating and shipping not included * All prices in Canadian Dollar
Extra Strong, Extra Rigid, Extra Effective Insulation
